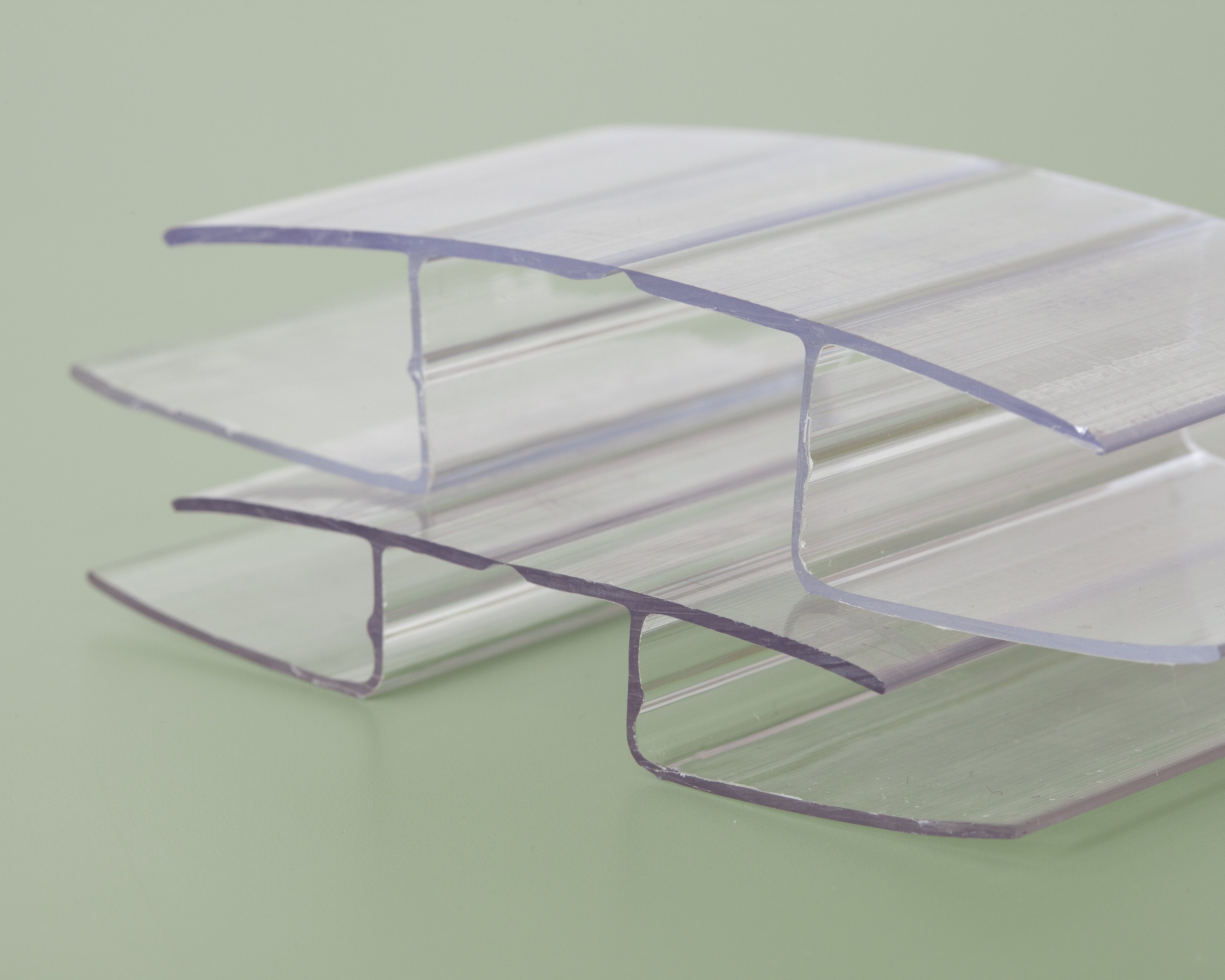

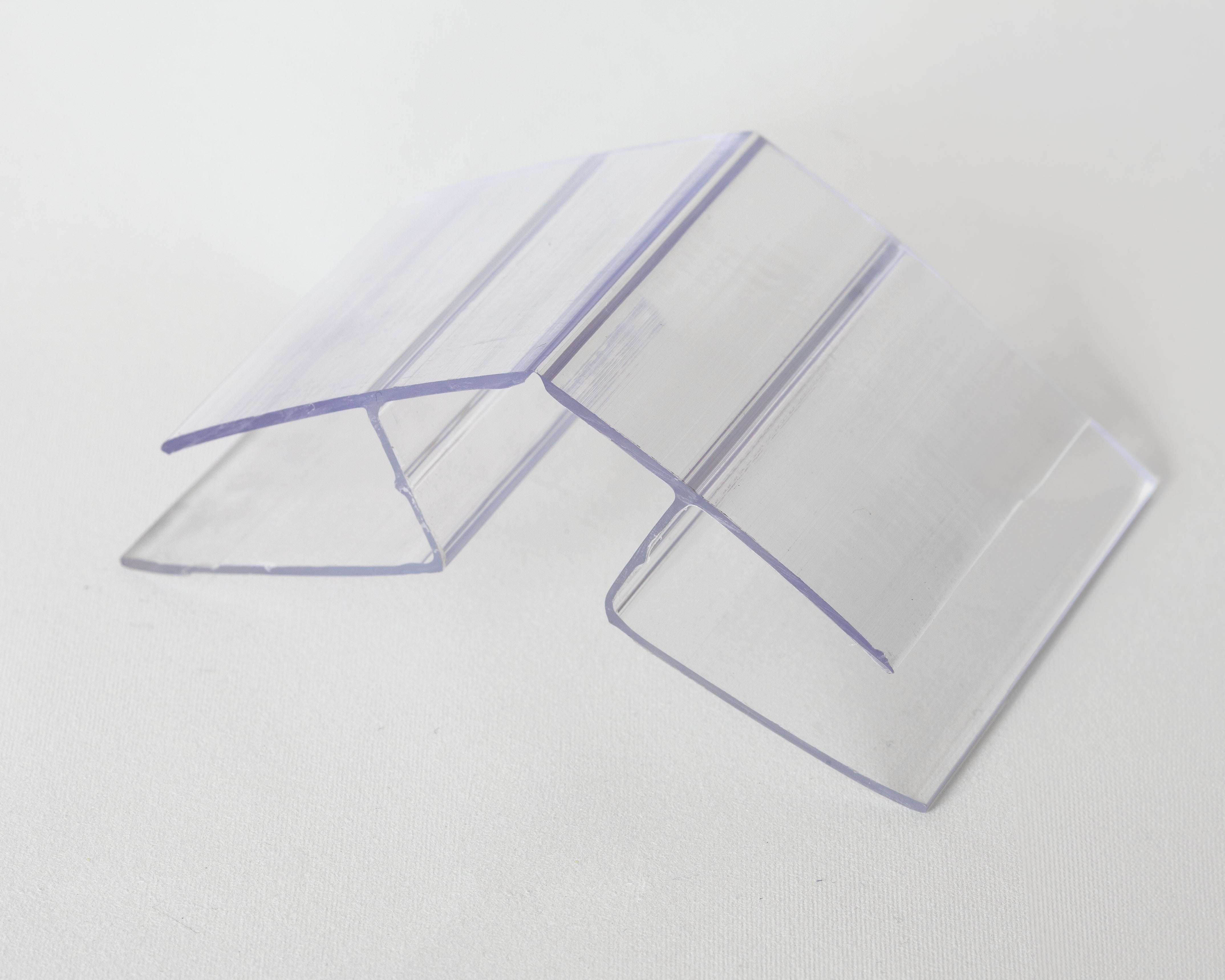

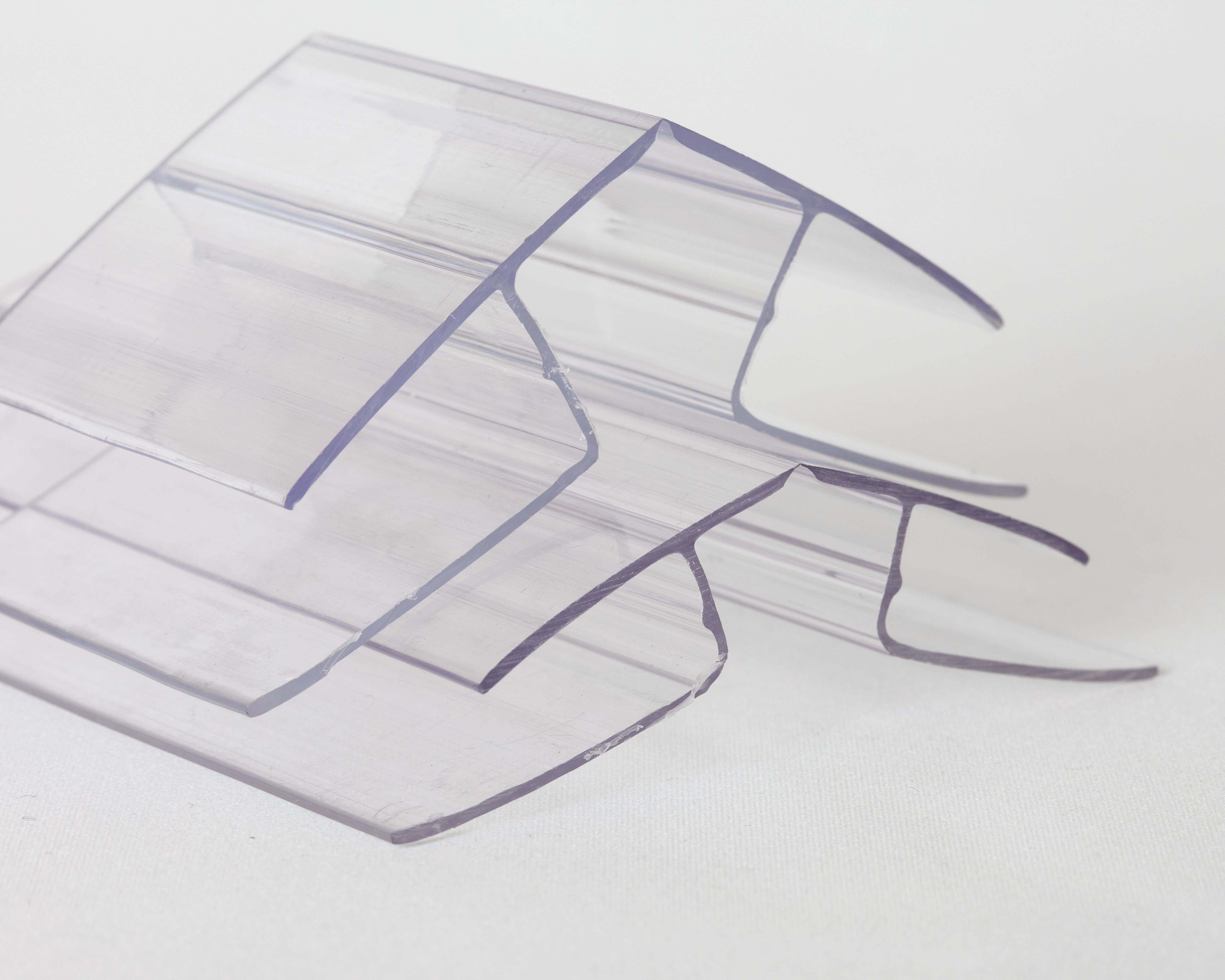

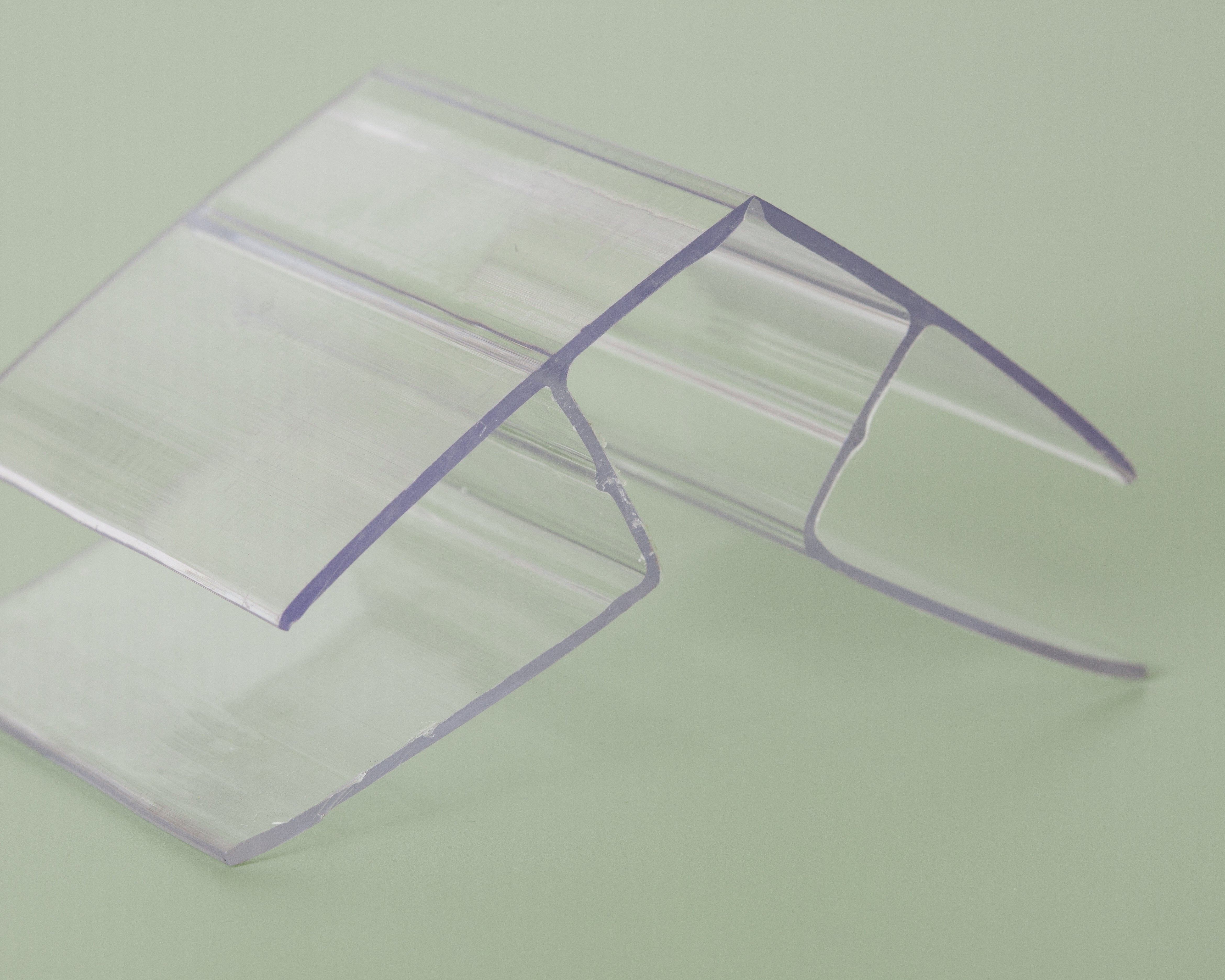

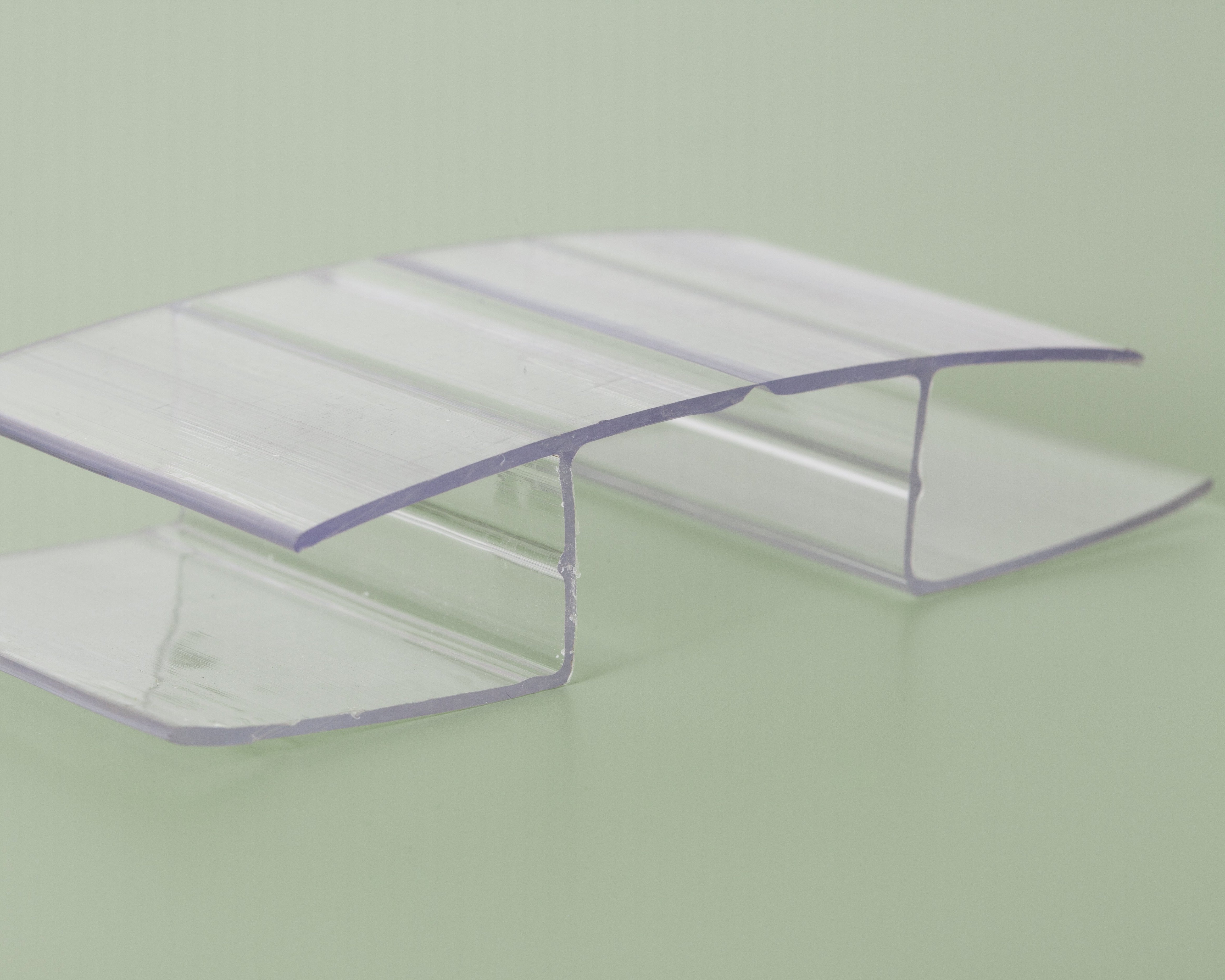

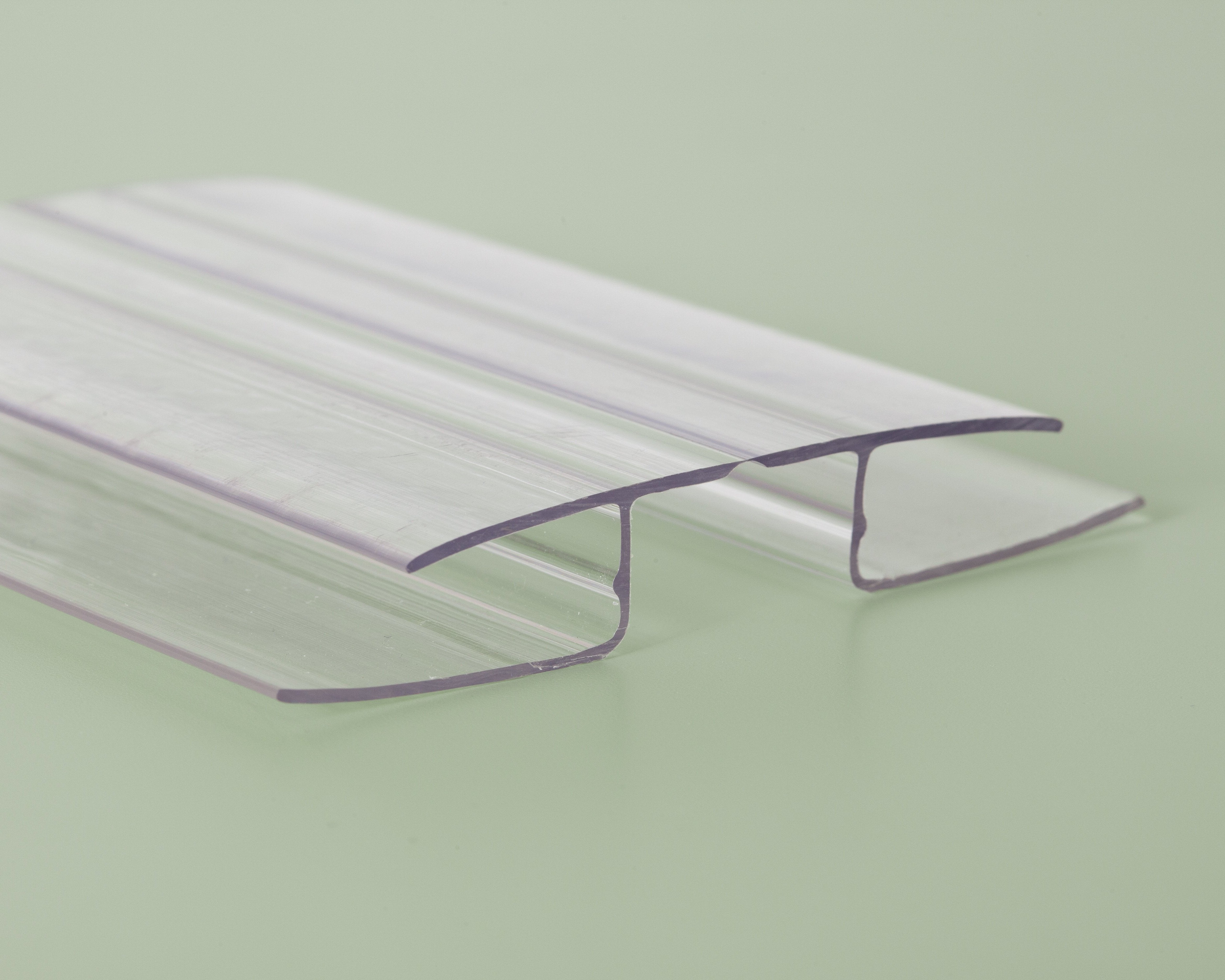

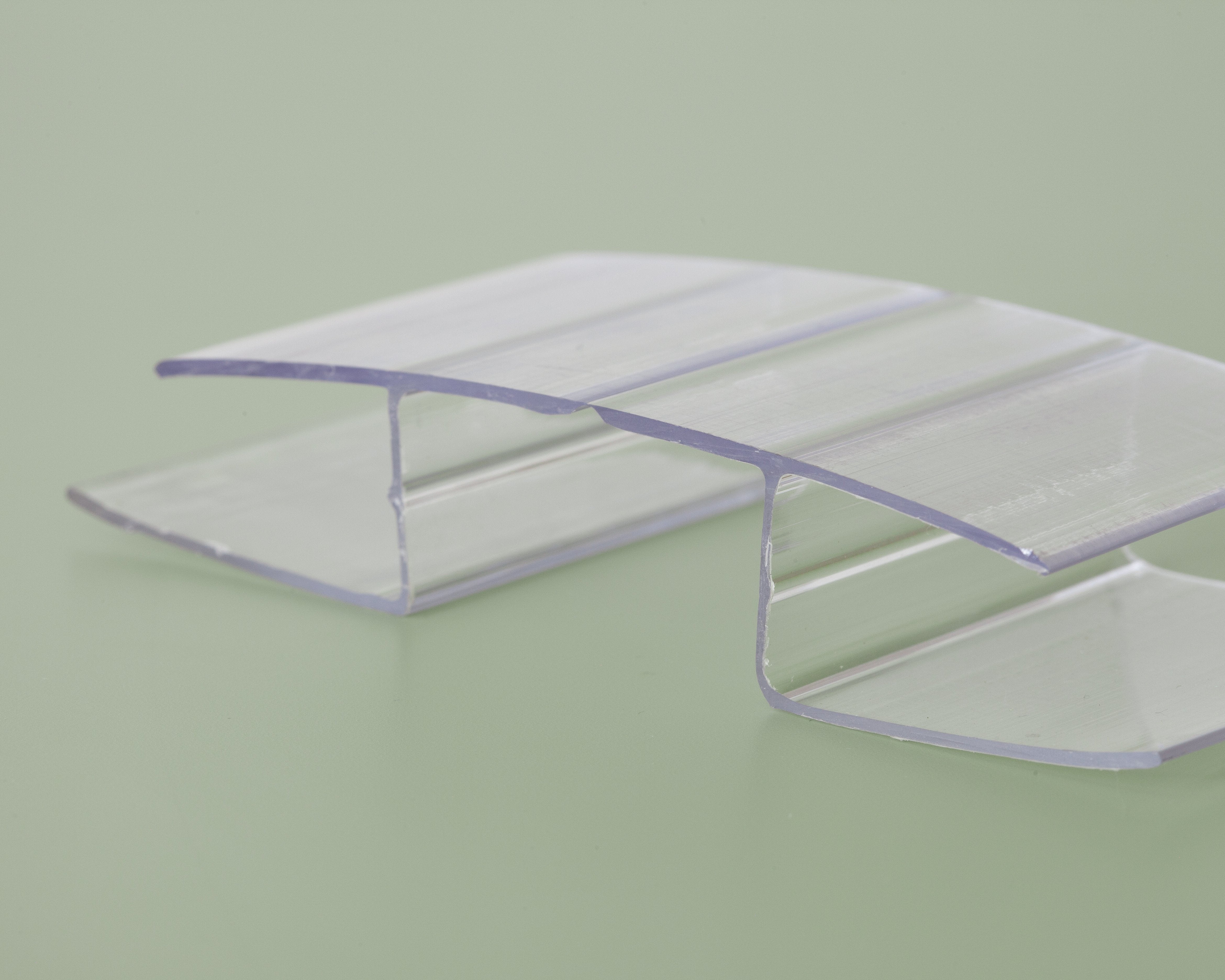

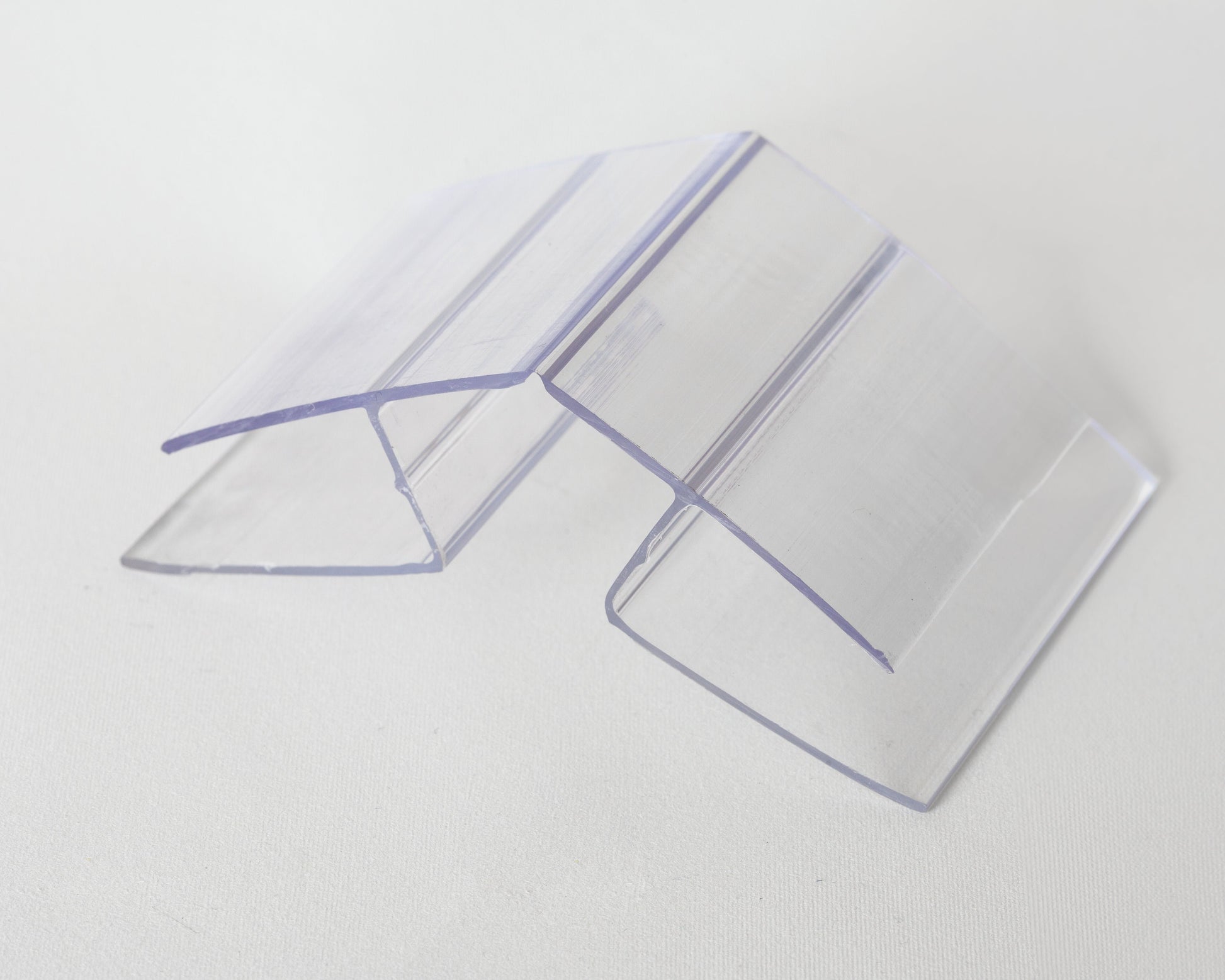

Polycarbonate Ridge Cap / Corner Cap (R Channel)

$43.44 - $71.25
Shipping calculated at checkout.

Securely connect polycarbonate panels at ridges or corners with this versatile, clear Polycarbonate Ridge Cap. Durable, UV-resistant, and designed for a clean finish, it simplifies assembly and protects against dirt and insects.

Thickness: 8-10mm
Length: 8ft
Fulfillment Method: Shipped
$43.44
$43.44

Not seeing a color or size you need? (Up to 24 ft offered)
Need local pickup for something out of stock?

We can help with that!

Request Custom Quote
Availability:
SKU: B1496-8
Tags:
Collections:

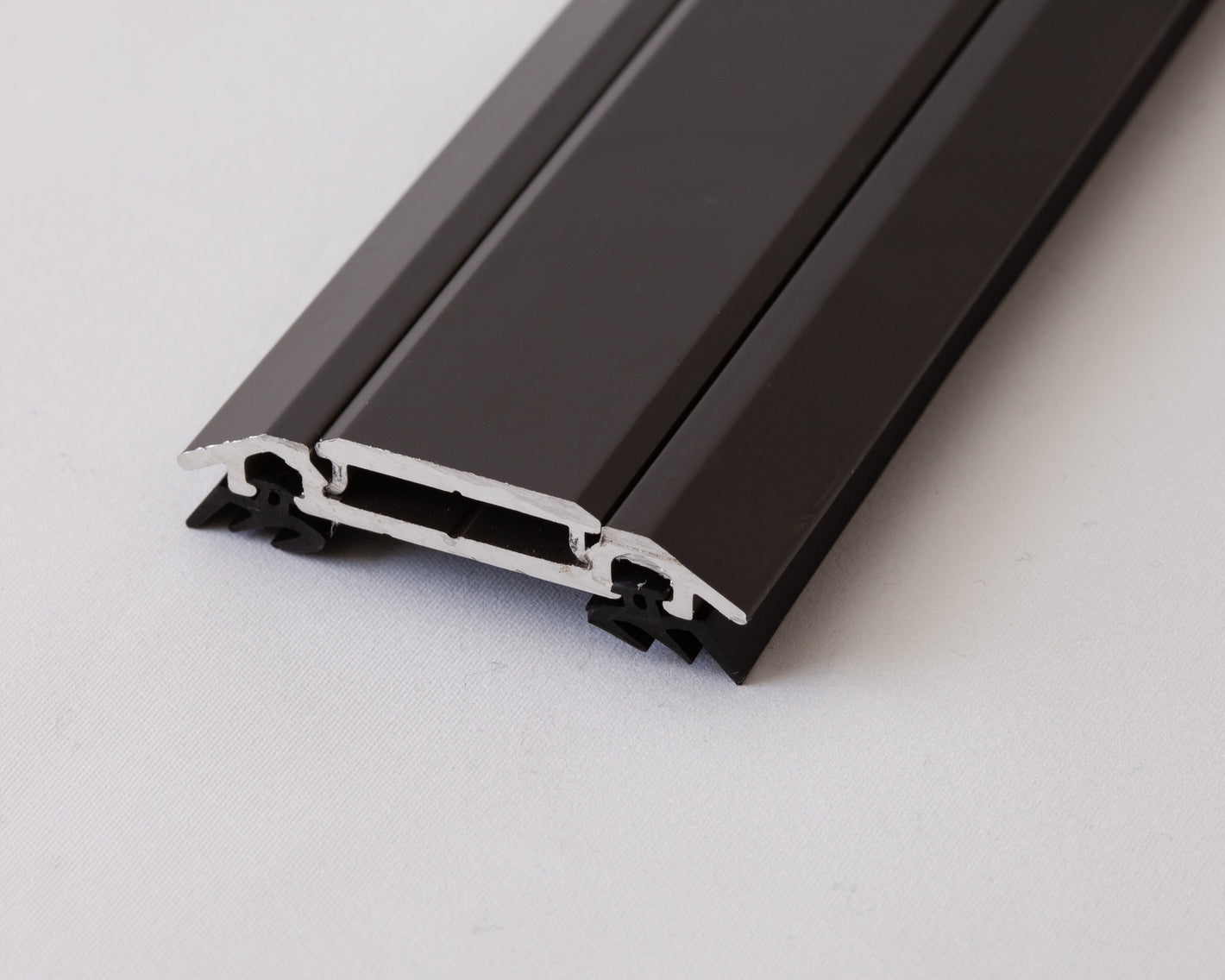

Polycarbonate StoreBrown Aluminum Bar Cap
Brown Aluminum Bar Cap
8-10mm Polycarbonate Ridge Cap / Corner Cap (R Channel)
$43.44
$43.44

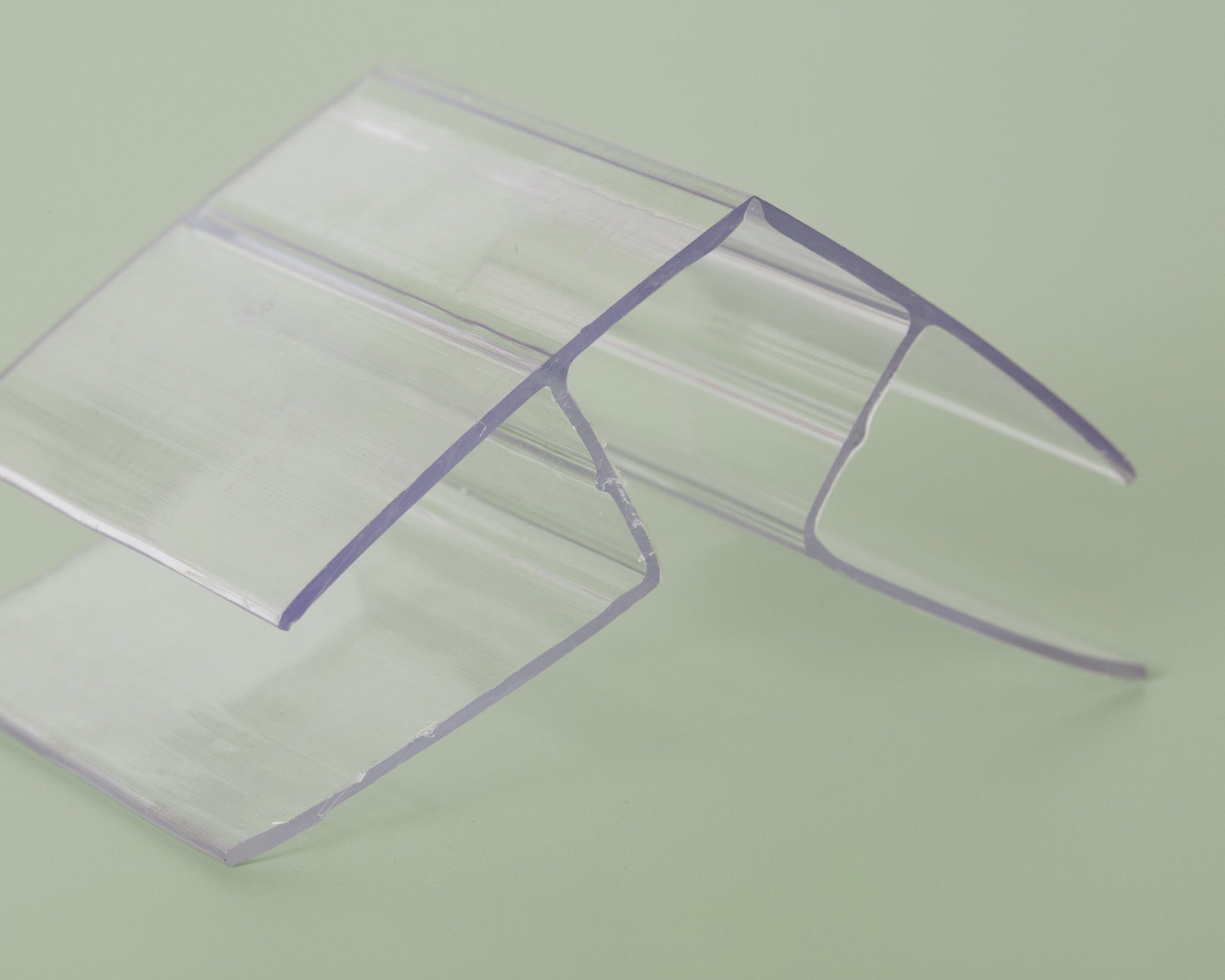

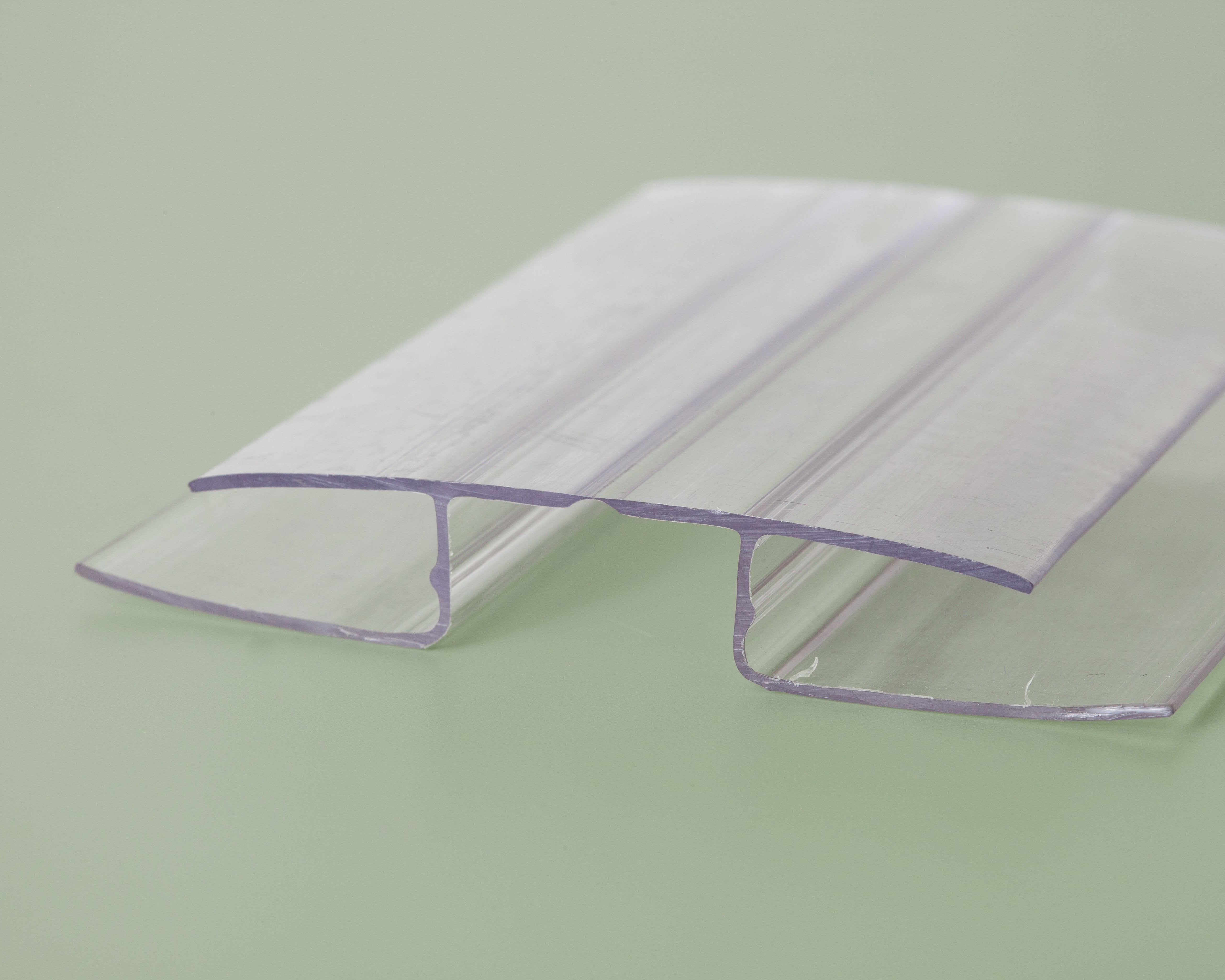

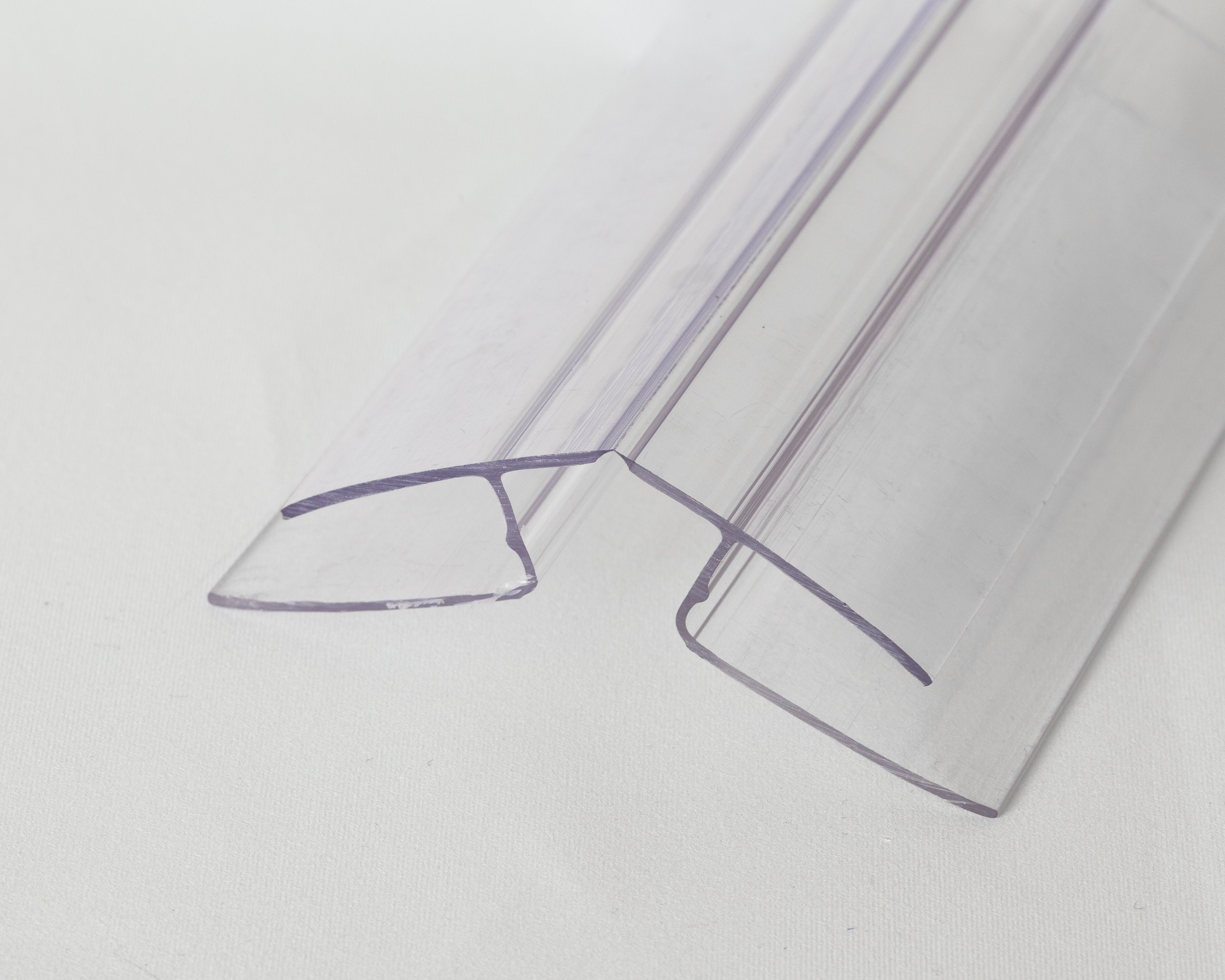

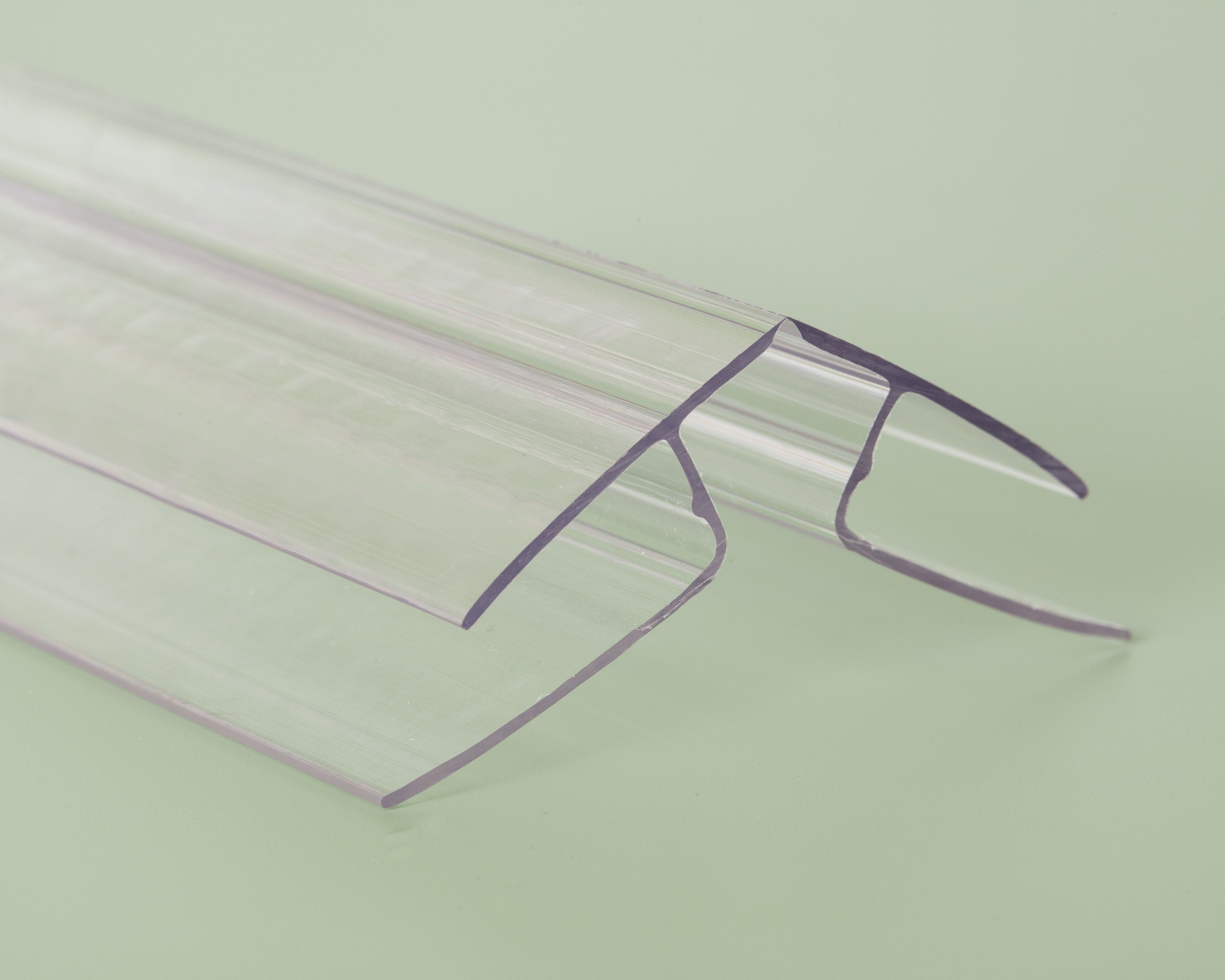

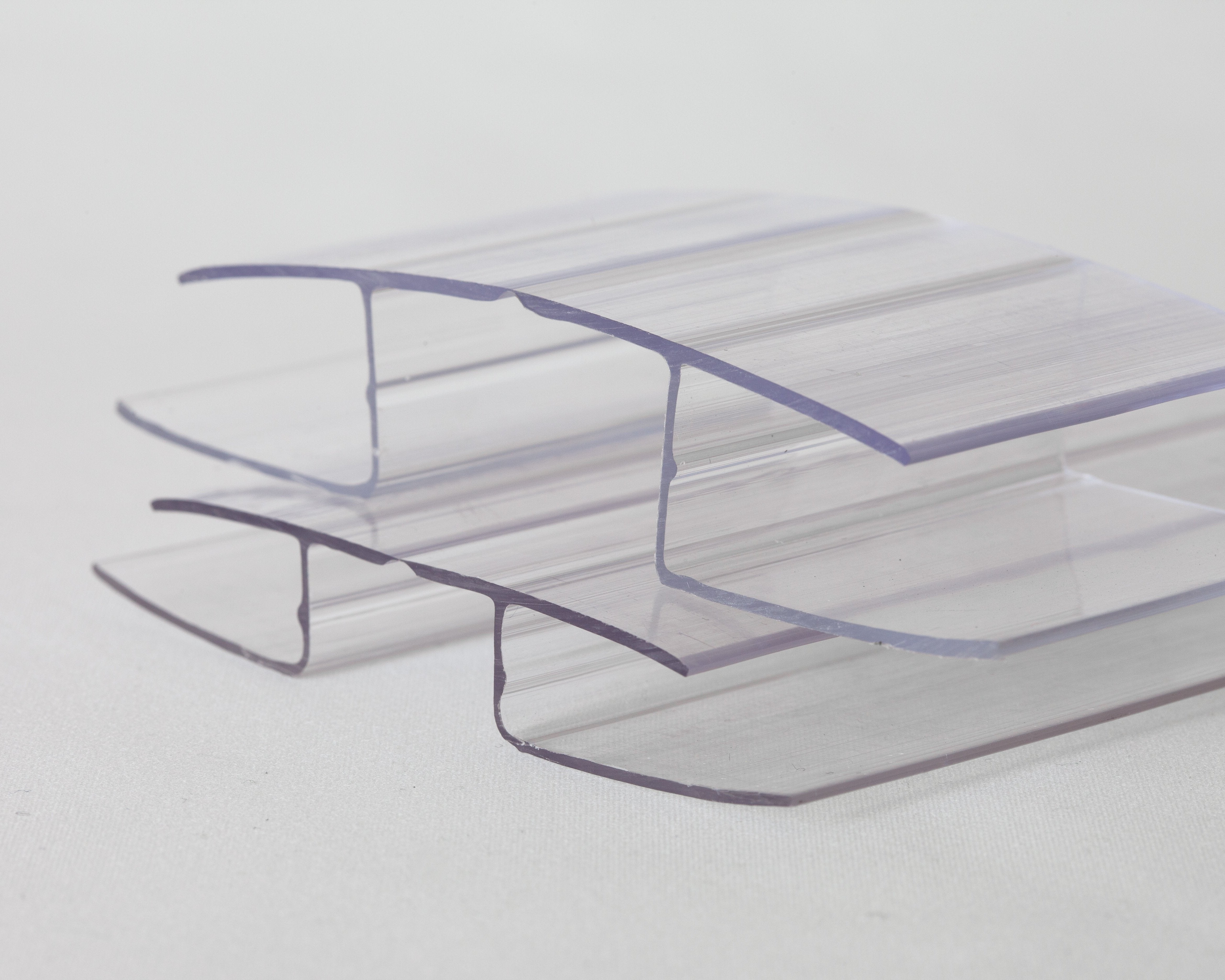

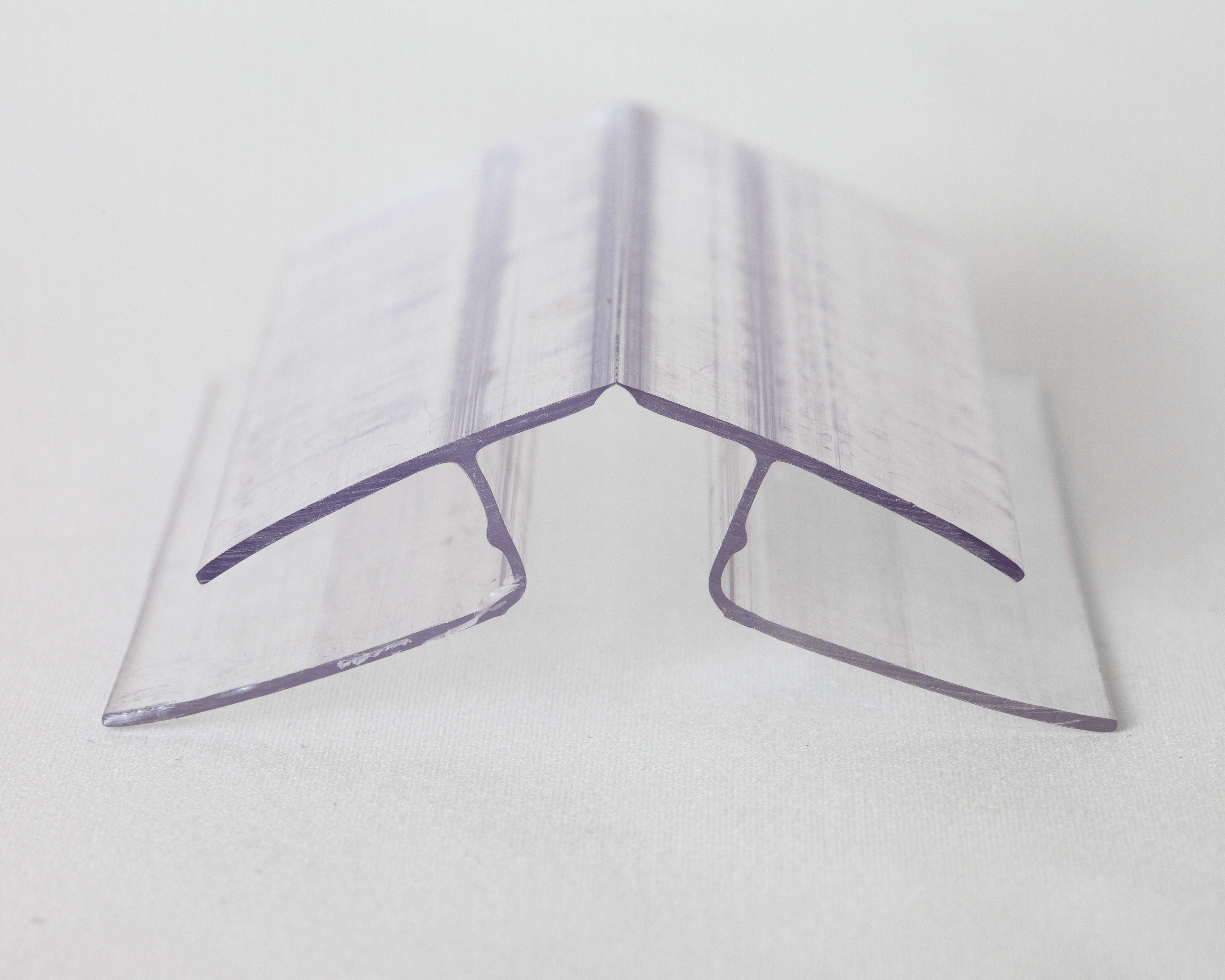

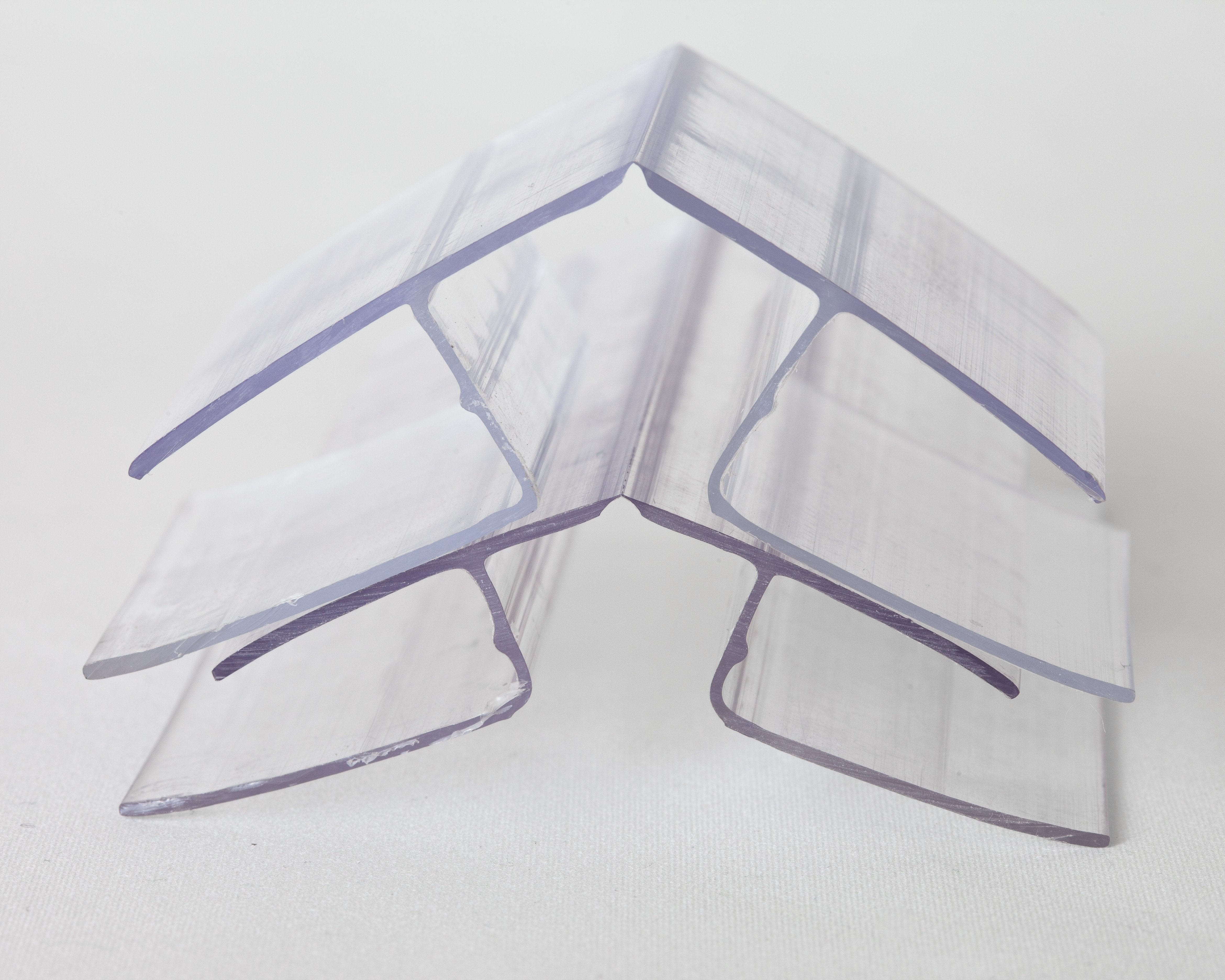

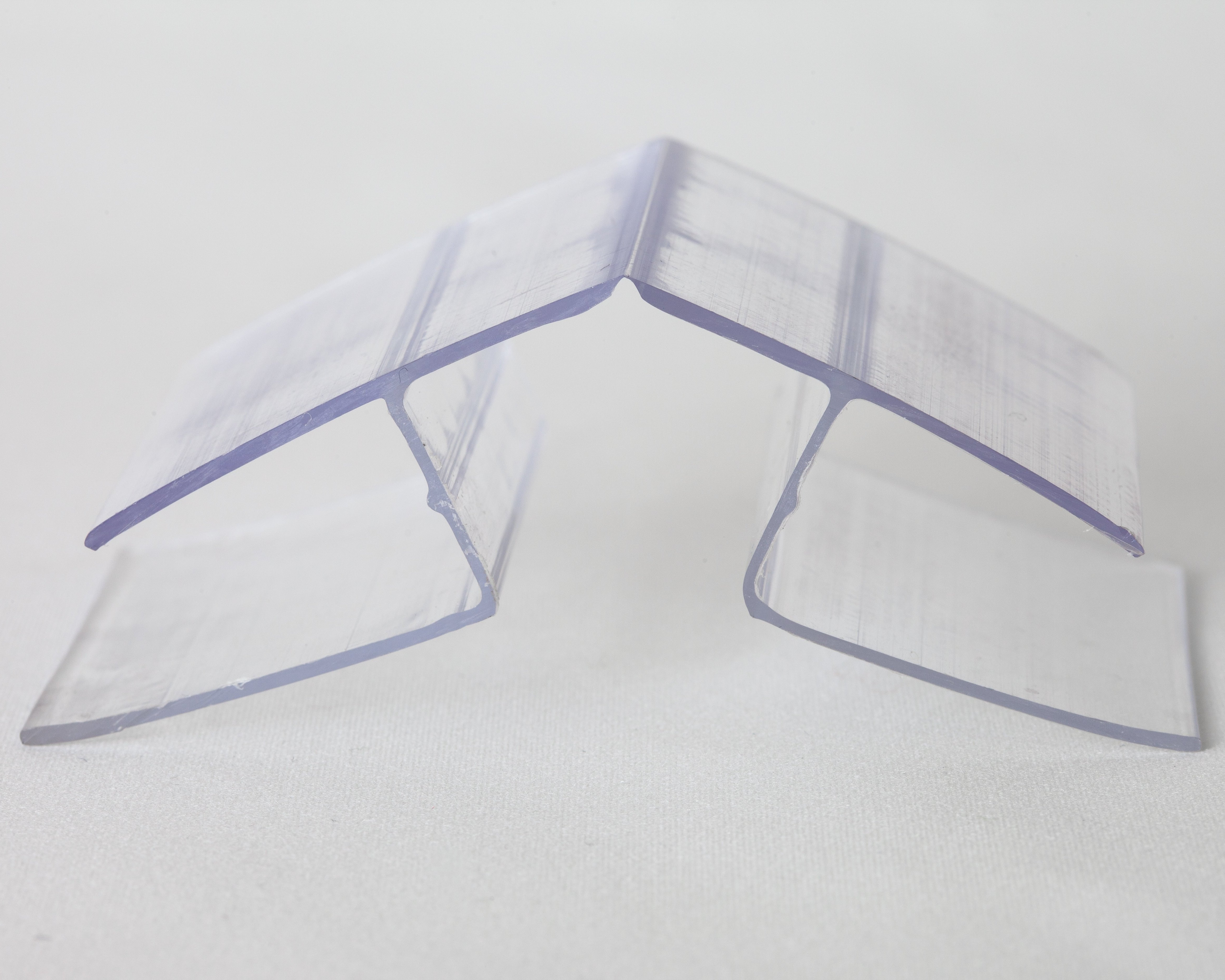

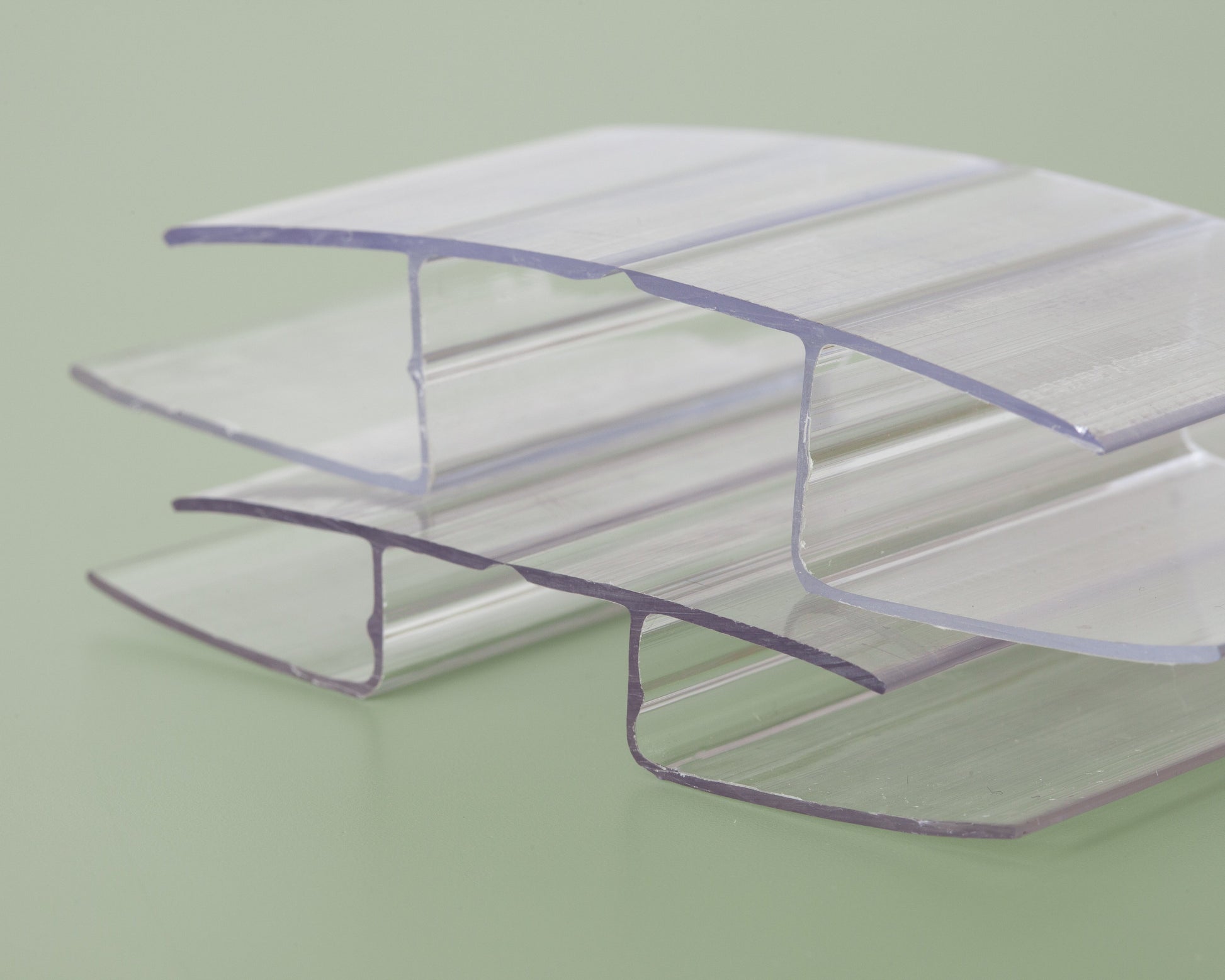

The Polycarbonate Ridge Cap, also known as an "R Channel," makes it easy to assemble and secure polycarbonate panels at ridge and corner points. Crafted from UV-resistant polycarbonate, these caps are built to withstand the elements, keeping out dirt, insects, and moisture. Easily trimmed to fit with a hacksaw, this cap provides a snug, weatherproof connection for your greenhouse or outdoor project.

  • Flexible Fit: Designed to adjust to angles as needed, with options to tape for added stability.
  • Weatherproof & Durable: UV-resistant and maintenance-free for long-lasting performance.

Specifications

Material: UV-resistant Polycarbonate
Weatherproofing: Waterproof, Sunlight-resistant
Color: Clear
Thickness: 8–10mm, 16mm

Installation Tips:

  • Cutting: Caps can be easily cut to length using a hacksaw.
  • Installation Direction: Always install caps with the wider side down for optimal support.
  • Ridge Thickness: The cap is intentionally thin at the top for flexibility. Be cautious during installation, as it may split.
  • Optional Tape Application: Apply aluminum or outdoor tape along the top after establishing the desired angle, or in sections if covering with metal flashing.
  • Fastening: Secure the Ridge Cap to the ridge beam using truss-head or decking screws.
  • Panel Insertion: Insert the polycarbonate into the Ridge Cap, leaving a gap of 1/16" to 1/8" at the top for ventilation and thermal expansion.
  • Optional Metal Flashing: Consider installing metal flashing over the Ridge Cap for added protection.

Shipping Method: Motor freight

Delivery Estimate: Please allow 2–3 weeks
For orders with polycarbonate panels (e.g., 4x8 or 4x10), the 12' cap may be cut to fit the crate; we will contact you for approval if needed.

For a shipping quote if ordering only capping without panels, contact us at 888-977-7659 or via quote request.
